01
HIGHLIGHTS
Affordable
Designed to utilize commercially available components to offer an affordable and reliable bus. Lower entry and running costs enable transit operators to adopt cleaner emissions technologies sooner.
Right Sized
Medium duty with big bus look and durability. Short turning radius and compact size allows great maneuverability in any community. Innovative monocoque frame technology in an efficient package, fitting into the smallest transit garages.
Versatile
Scaled down for a diverse range of uses including community shuttles, paratransit, university shuttles and other applications. Particularly well-suited for smaller communities, or medium to low-ridership routes.
Accessible

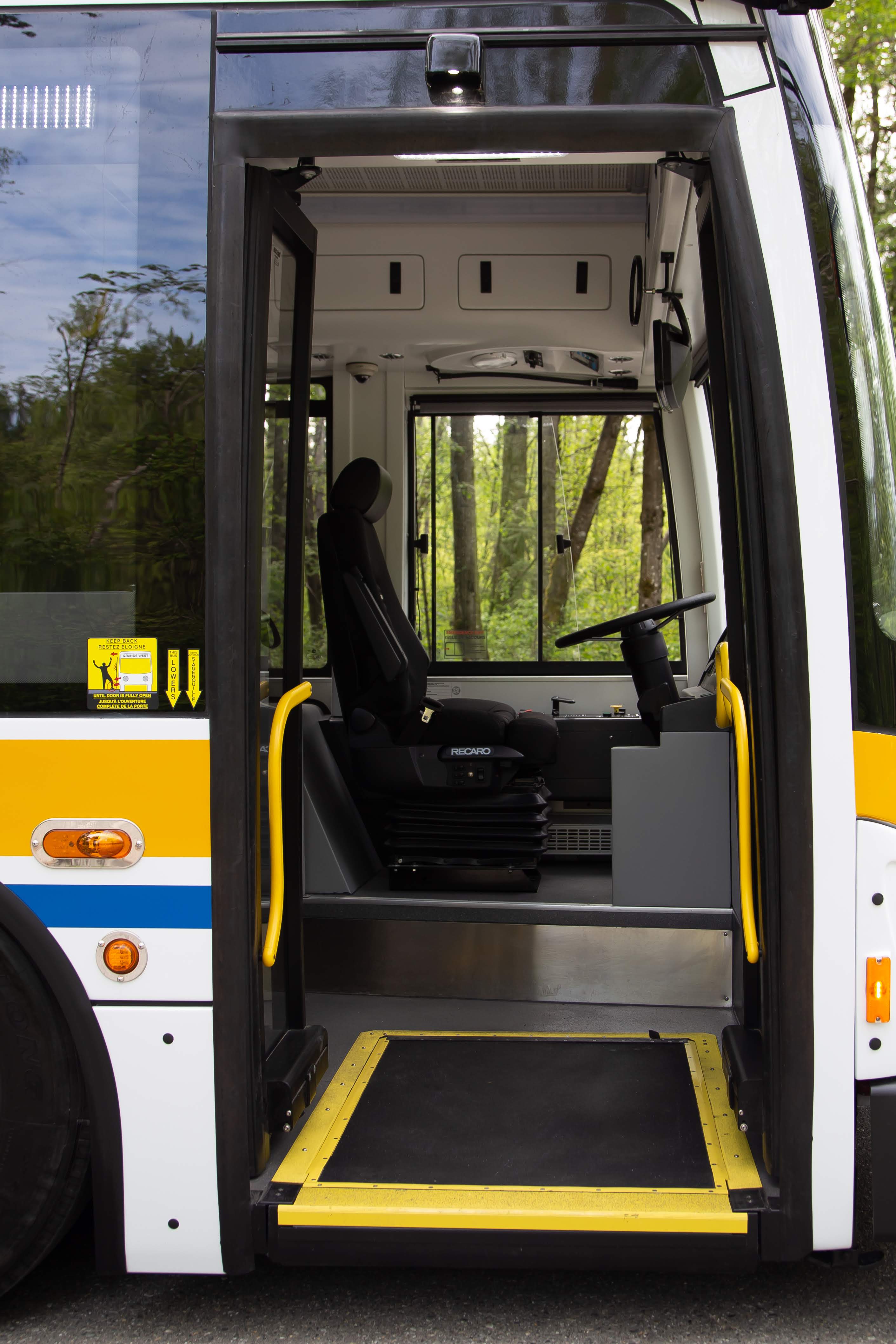

Fully ADA compliant with kneeling and 6:1 wheelchair ramp for efficient and safe ingress/egress. Up to 4 wheelchair positions (front/rear facing) with several commercially available tie-down systems. Plus, an optional middle access door.
Comfort

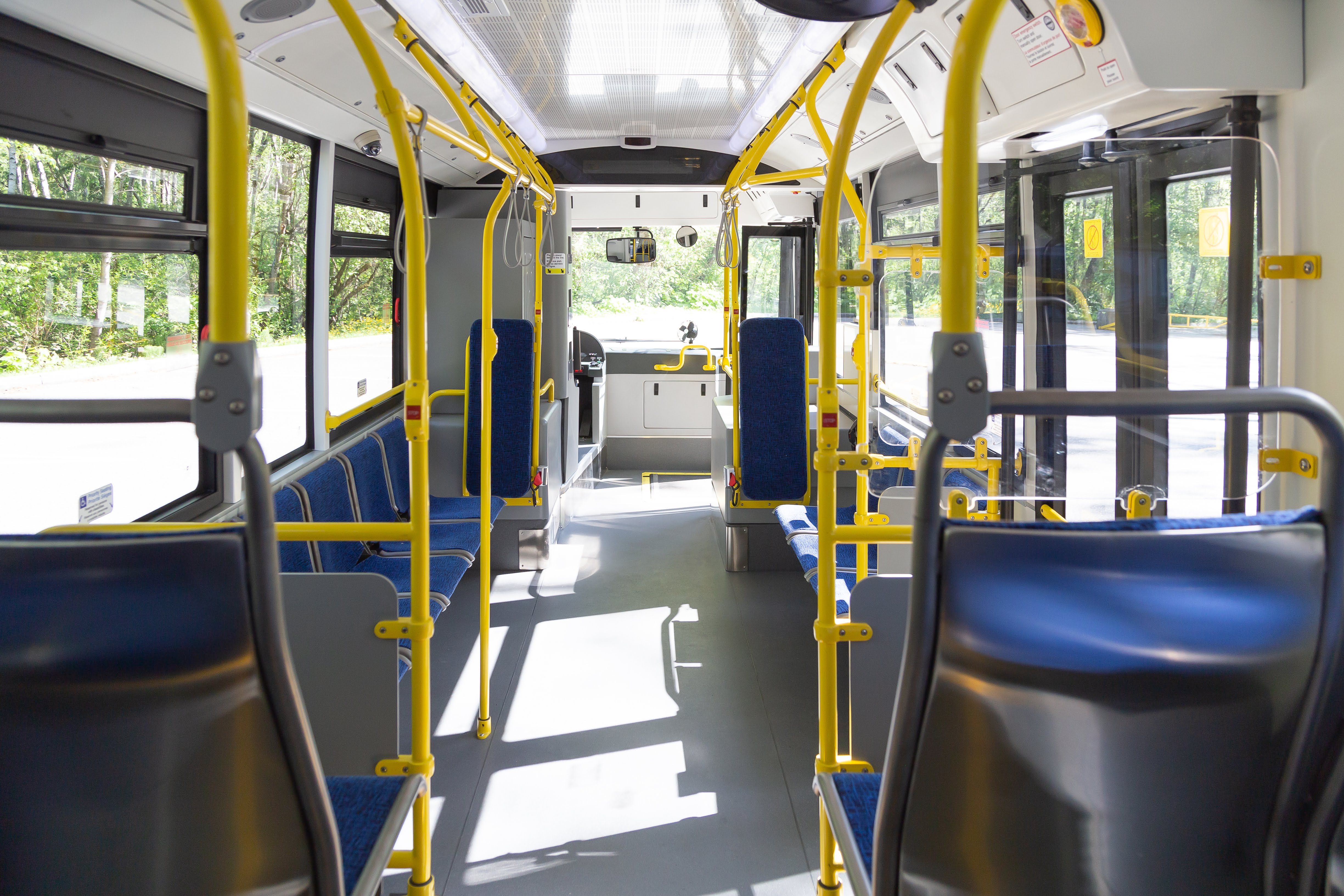

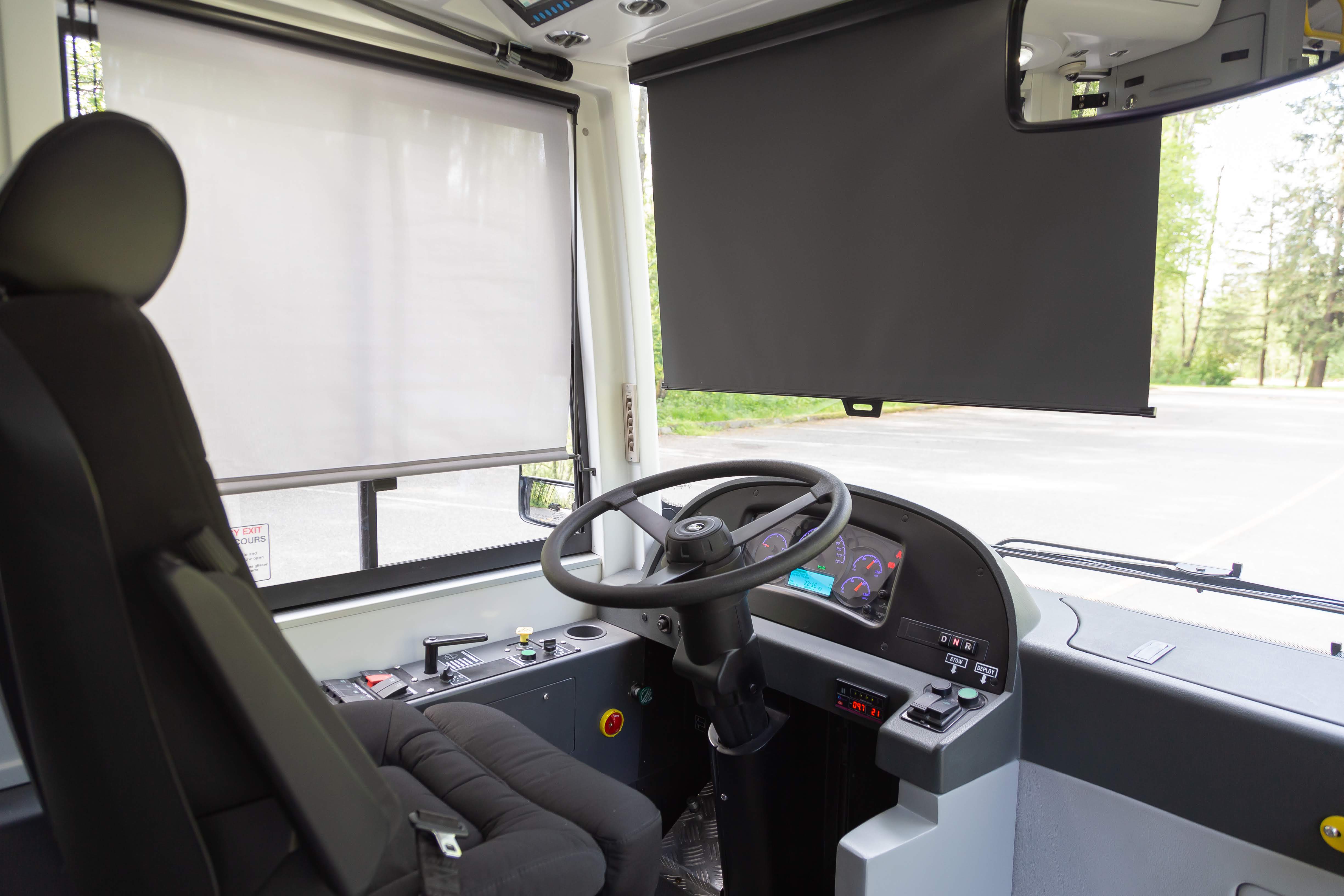

Air-ride suspension provides best-in-class ride comfort and handling. Larger transit-style windows with a modern interior design. High-capacity heating and air conditioning system, with independent driver and passenger control. Best-in-class driver ergonomics with big-bus workstation design.
Efficient
Available in both CNG and Clean-Diesel variants, paired with best-in-class fuel economy to significantly reduce your emissions footprint.
02
MODEL COMPARISON
- GENERAL SPECIFICATIONS
- Passenger Seating (Max)
- Total Passengers (Max)
- Total Length
- Width (Body)
- Height (top of AC)
- Wheelbase
- Turning Radius
- Overhang Front/Rear
- Approach Angle°
- Break Over Angle°
- Departure Angle°
- Entry height (unkneeled)
- Entry height (kneeled)
- Interior Height
- Entrance door Width/Height
- Exit Door Width/Height
- Doors (air/electric)
- FMVSS 208 Certified Seat belts
- 6:1 Front/Rear Wheelchair Ramp
- Valeo Rooftop AC
- Wheel Chair Positions
- TECHNICAL SPECIFICATIONS
- Curb Weight
- GVWR
- Monocoque Frame
- Available Power Types
- Engine Type
- HP
- Torque (ft*lbs)
- Available Transmission Types
- Retarder
- Front Axle
- Rear Axle

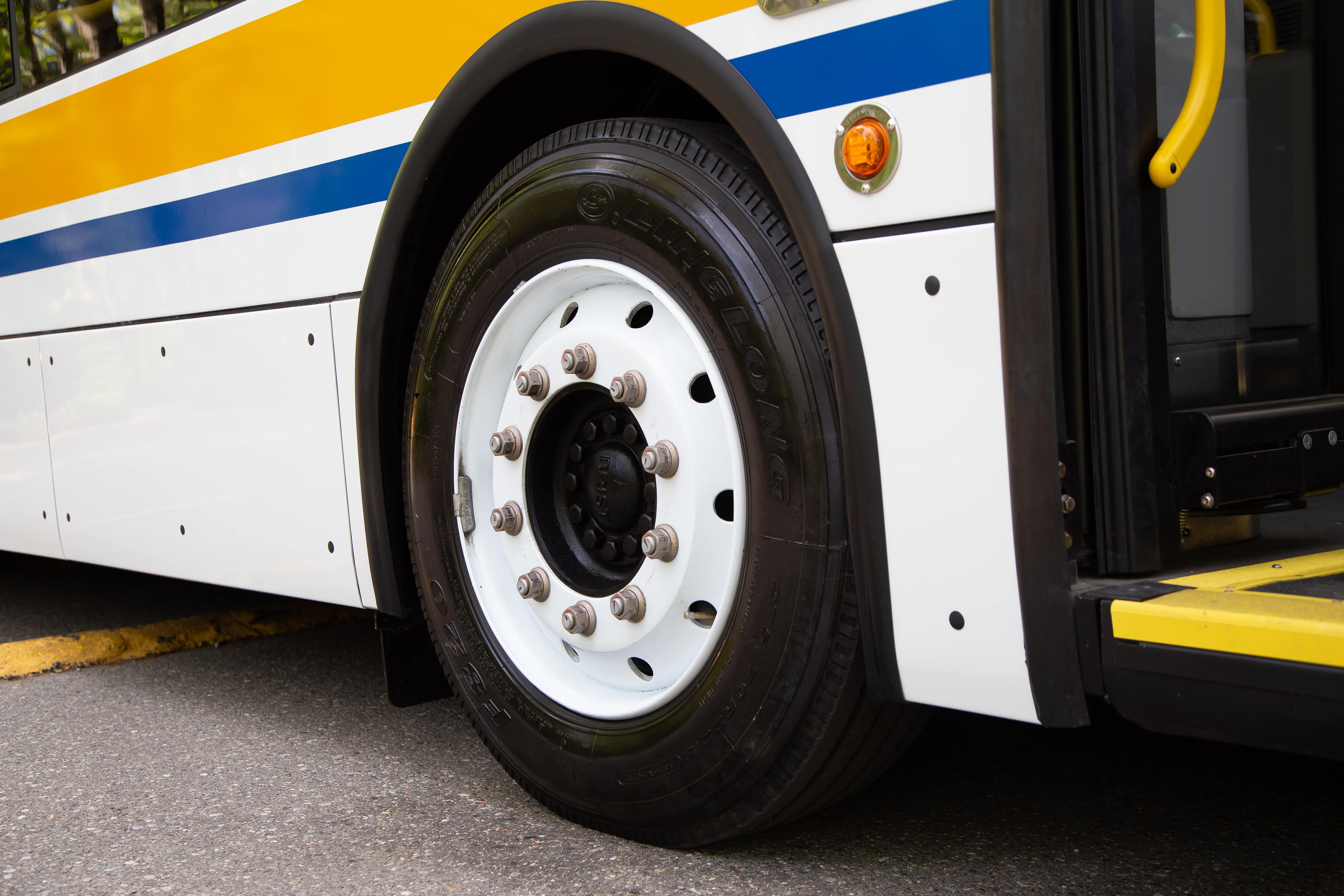

- Wheel Diameter
- Air Disc Brakes
- Hydraulic Disc Brakes
- Electrical System
- HVAC Heating/Cooling (Btu)
- Air Ride System
- Destination Sign
-

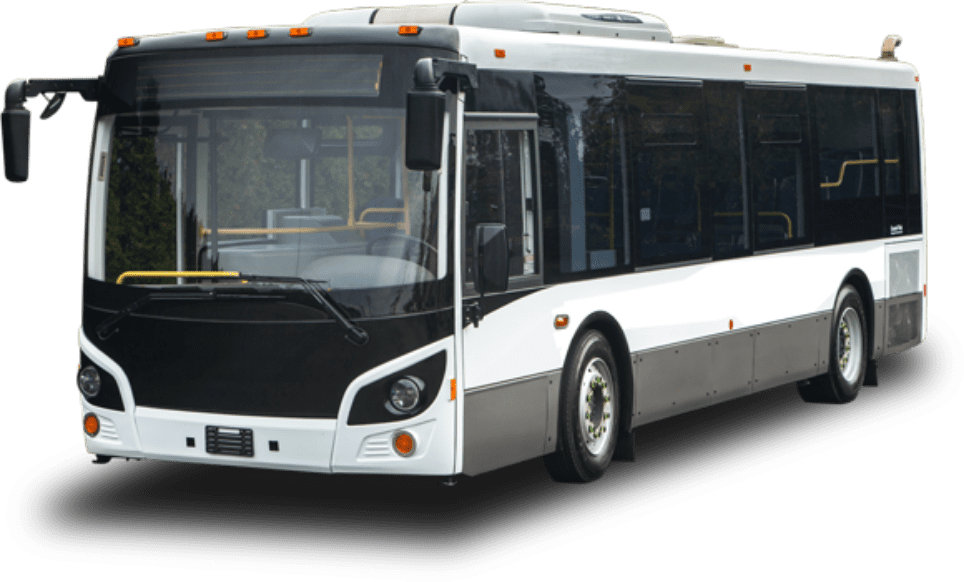

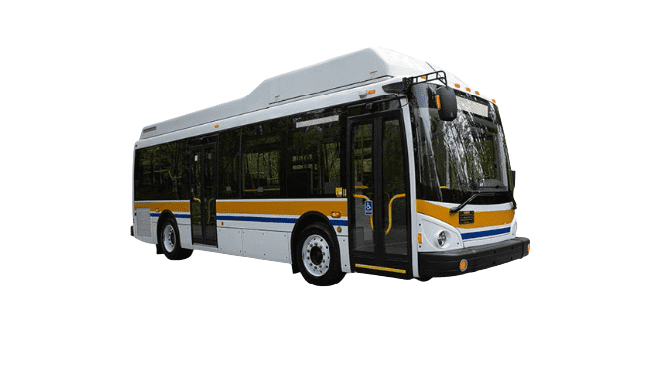

Vicinity Classic
Vi30- 27
- 44
- 30'
- 98.4"
- 118"
- 191.5"
- 354"
- 84.5"/84"
- 8.8
- 13
- 10.7
- 14.5"
- 11.5"
- 92.5"
- 33"/74"
- 34"/74"
- Std./Opt.
- Yes
- Yes/Yes
- RG400
- 2-4
- 22,100 lbs
- 30,200 lbs
- Std./Opt.
- CNG/Clean-Diesel
- Cummins ISB 6.7L
- 240/250
- 560/660
- Allison, ZF, Voith
- Integrated
- Brist (Independent)
- Dana (V-drive)
- 22.5"
- Knorr-Bremse
- -
- Parker-Vansco PLC
- 170,000 / 133,000
- Wabco Ecas II
- Luminator (Std.)
-

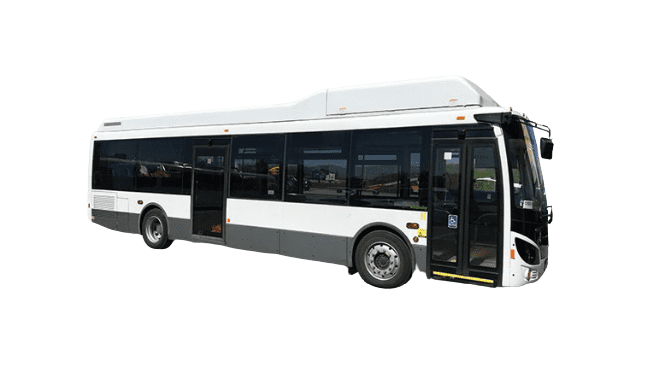

Vicinity Classic
Vi35- 33
- 54
- 35'
- 98.4"
- 118"
- 223.5"
- 404"
- 85"/112.8"
- 8.8
- 12
- 8.7
- 14.5"
- 11.5"
- 92.5"
- 33"/74"
- 34"/74"
- Std./Opt.
- Yes
- Yes/Yes
- RG400
- 2-4
- 23,650 lbs
- 33,000 lbs
- Std./Opt.
- CNG/Clean-Diesel
- Cummins ISB 6.7L
- 240/250
- 560/660
- Allison, ZF, Voith
- Integrated
- Brist (Independent)
- HanDe (T-drive)
- 22.5"
- Knorr-Bremse
- -
- Parker-Vansco PLC
- 170,000 / 133,000
- Wabco Ecas II
- Luminator (Std.)
03

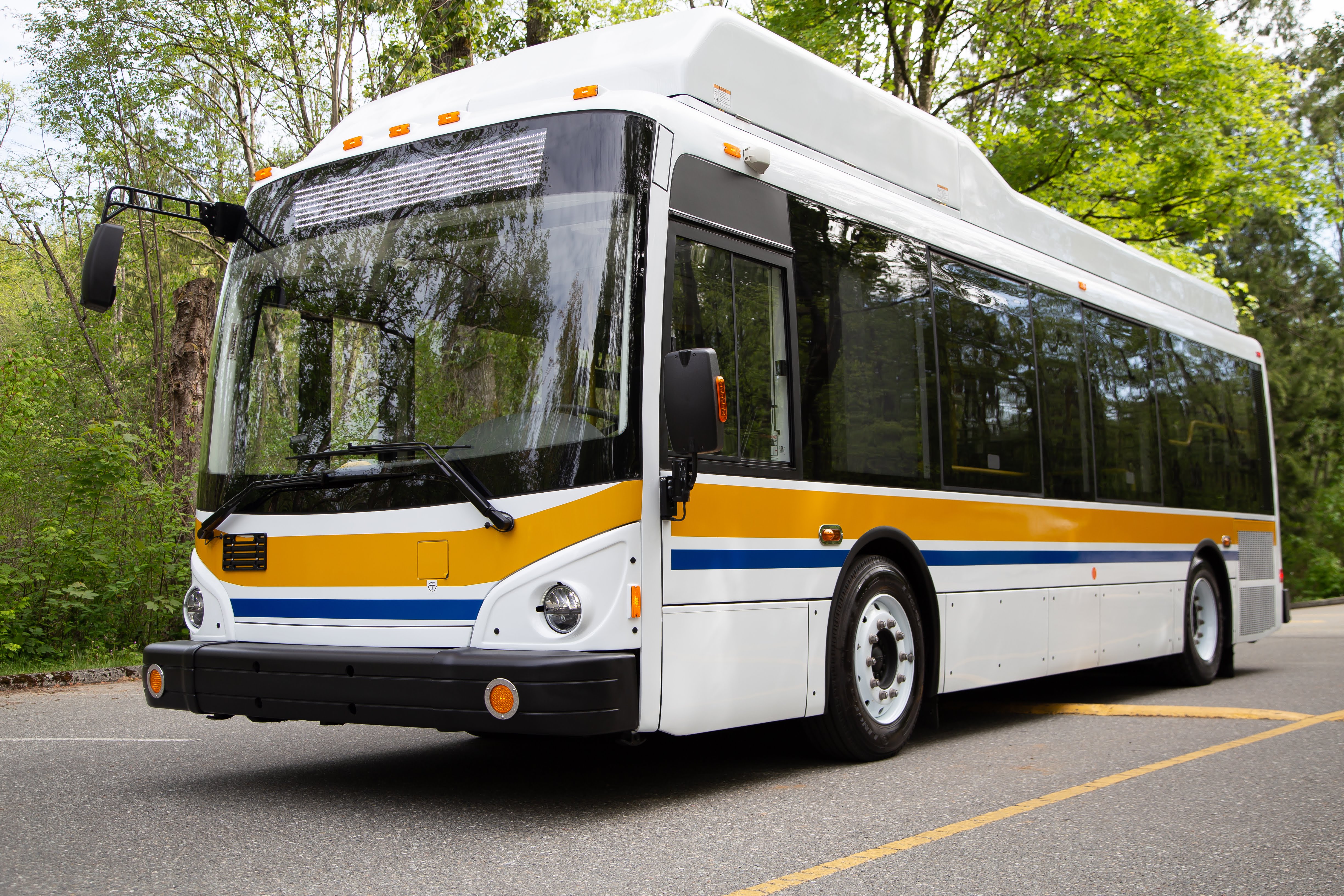

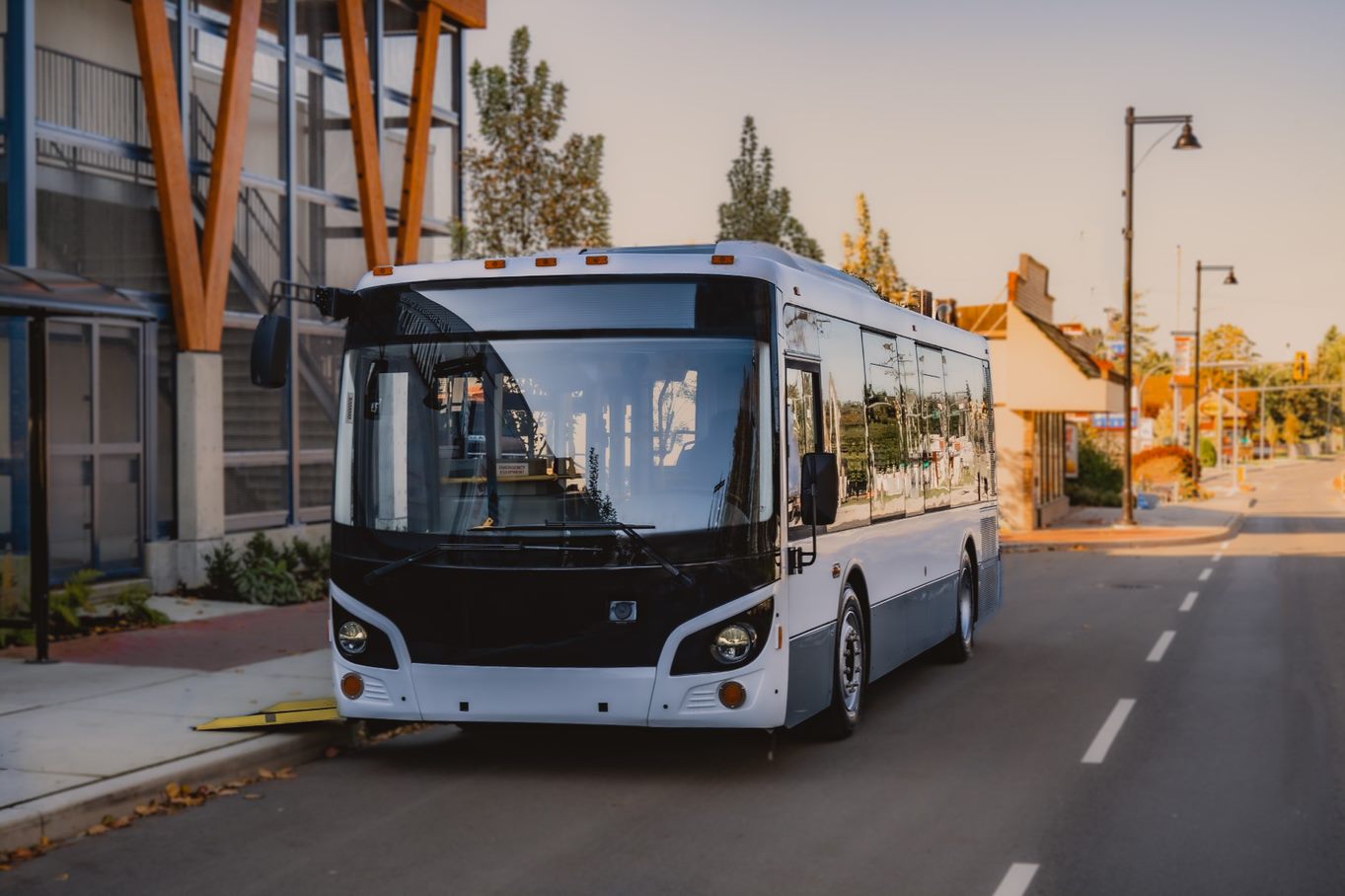

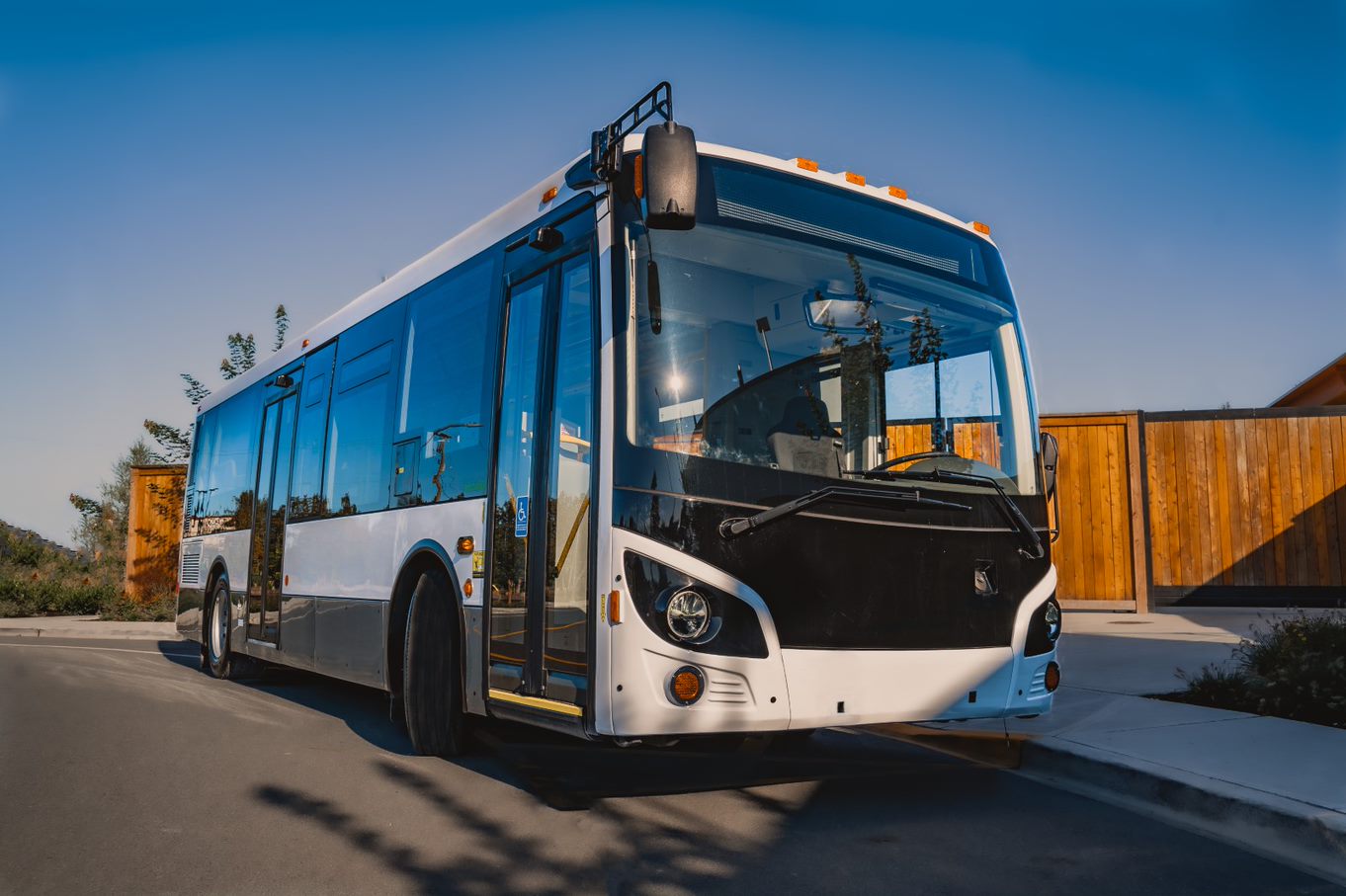

Gallery
