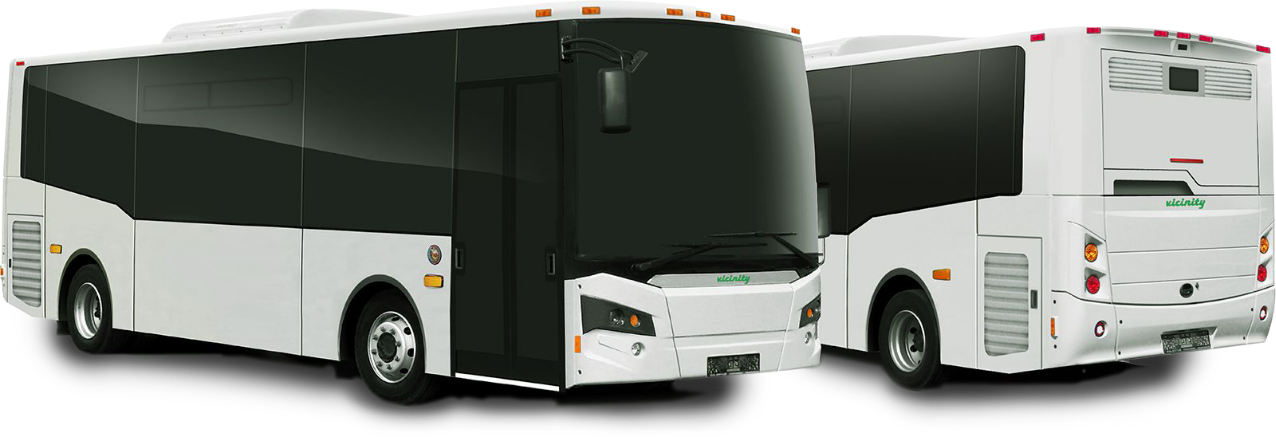

Medium duty, accessible, fully electrified low-floor transit/shuttle bus

01

HIGHLIGHTS

Charging Affordable

Designed to utilize commercially available components and charging systems to offer an affordable and reliable electric bus. Lower entry and running costs enable transit operators to adopt EV technologies sooner.

EfficientRight Sized

Medium duty with big bus look and durability. Short turning radius and compact size allows great maneuverability in any community. Innovative monocoque frame technology in an efficient package, fitting into the smallest transit garages.

Low costVersatile

Scaled down for a diverse range of uses including community shuttles, paratransit, university shuttles and other applications. Particularly well-suited for smaller communities, or medium to low-ridership routes.

diverseAccessible

Fully ADA compliant with kneeling and 6:1 wheelchair ramp for efficient and safe ingress/egress. Up to 4 wheelchair positions (front/rear facing) with several commercially available tie-down systems. Plus, an optional middle access door.

Industry Comfort

Air-ride suspension provides best-in-class ride comfort and handling. Larger transit-style windows with a modern interior design. High-capacity heating and air conditioning system, with independent driver and passenger control. Best-in-class driver ergonomics with big-bus workstation design.

ChargingEfficient

Powered by sustainable energy sources. Creative design and use of materials reduce overall carbon footprint. Electric propulsion system designed with maximum efficiency in mind to reduce energy consumption and increase range.

02

powertrain components and charging

power1

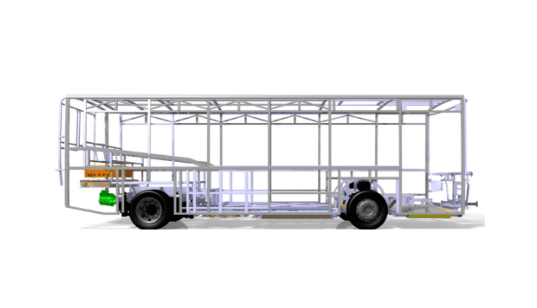

Floor mounted batteries create lower center of gravity, enabling exceptional handling.

26mediuduty

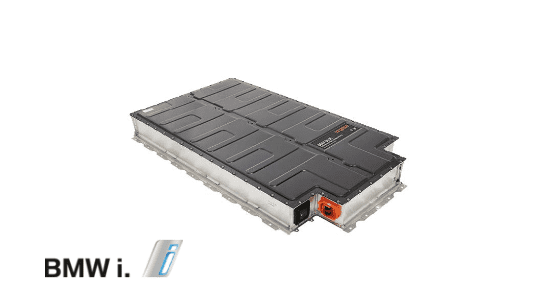

Expandable battery capacity based on your needs.

28mediuduty

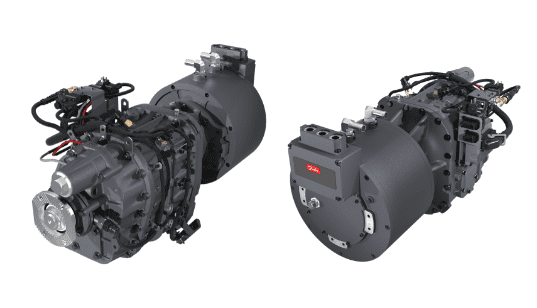

Electric propulsion system provides peak power of 295 hp (200 kW). Specifically designed for HD commercial and transit applications.

30ftdiesel

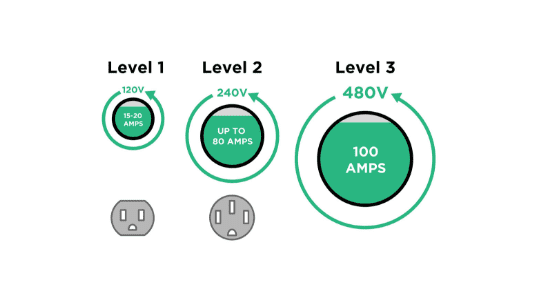

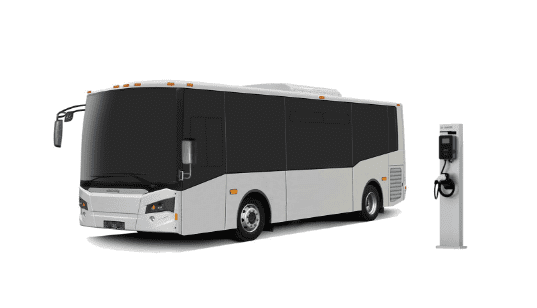

Standard level 1-3 charging capabilities, full charge in as quick as 1.5 hours with DC fast charging.

35ftdiesel

Utilizes standard CCS1 combo connector for AC and DC charging. 03 Technical Specifications with the turning radius formatting issue.



03

Technical Specifications

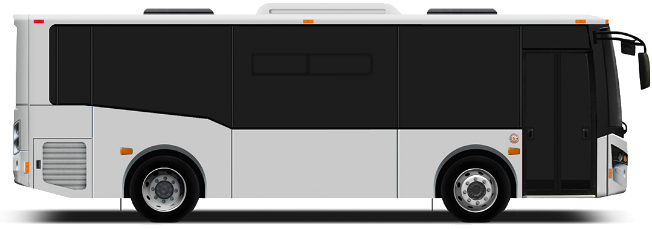

03 tech spe v2
   Curb Weight 16,500 lbs (7,500 kg)
   GVWR 22,000 lbs (10,000 kg)
   Passenger Cap. Up to 34
   Motor 295 hp (220 kW)
   Batteries 168 - 252 kWh
   Range Up to 185 mi (300 km)

   Length 28' (8.6 meters)
   Width 96.5" (2.5 meters)
   Height 9.8' (3.0 meters)
   Turning Radius  30'10" (9.4 meters)
   Gradeability 20%


04

Gallery

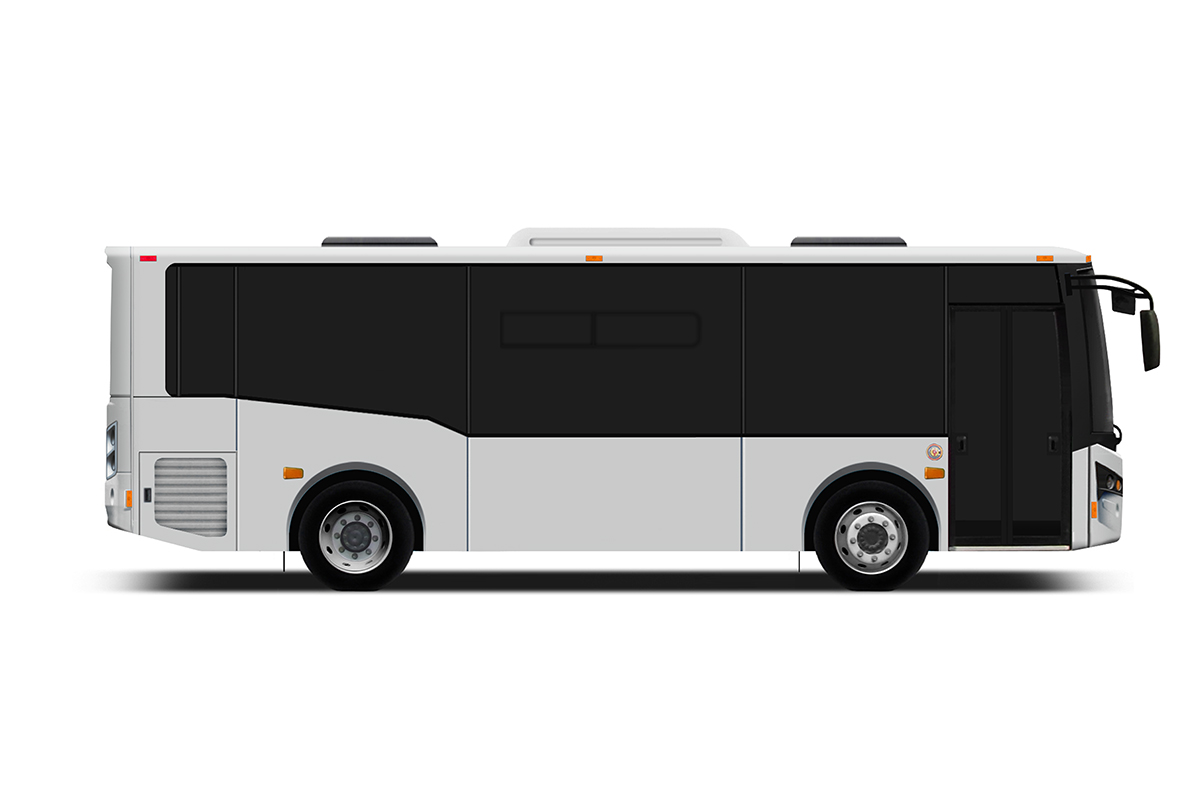

  • vicinity-models-lightning-ev-gallery-1.jpg

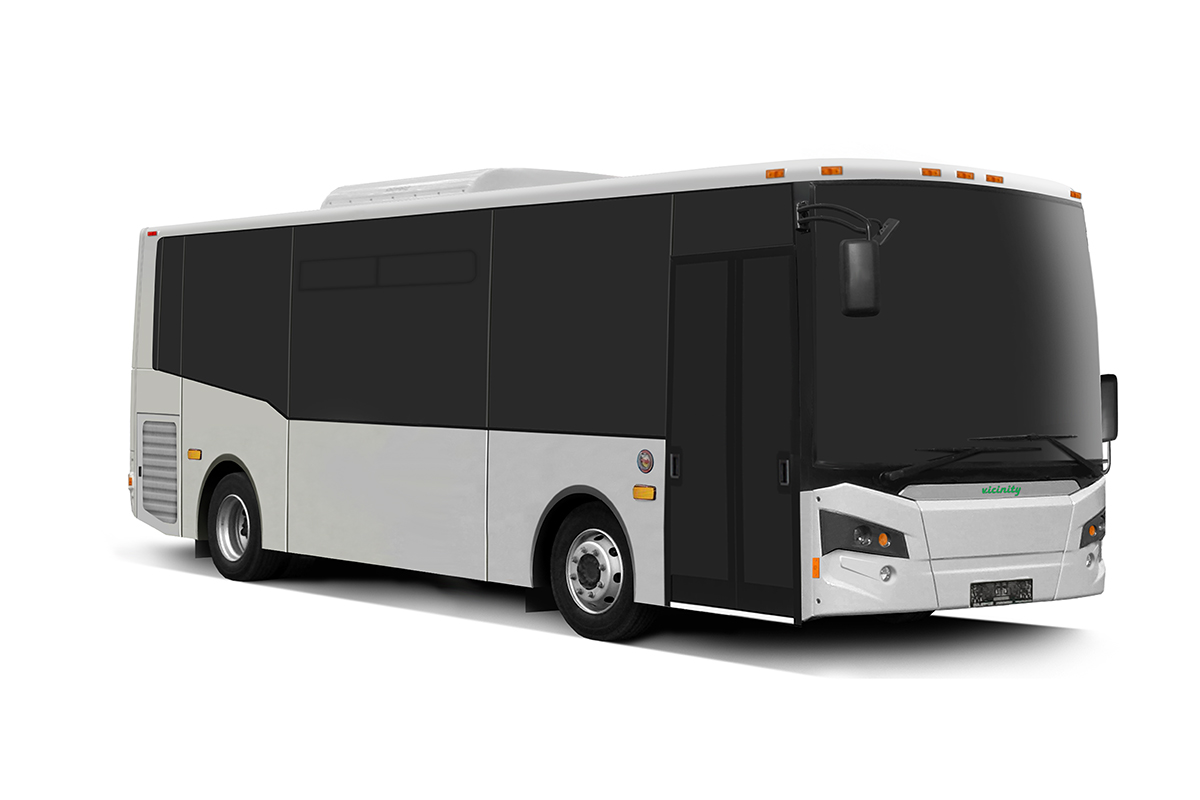

  • vicinity-models-lightning-ev-gallery-2-right-front.jpg

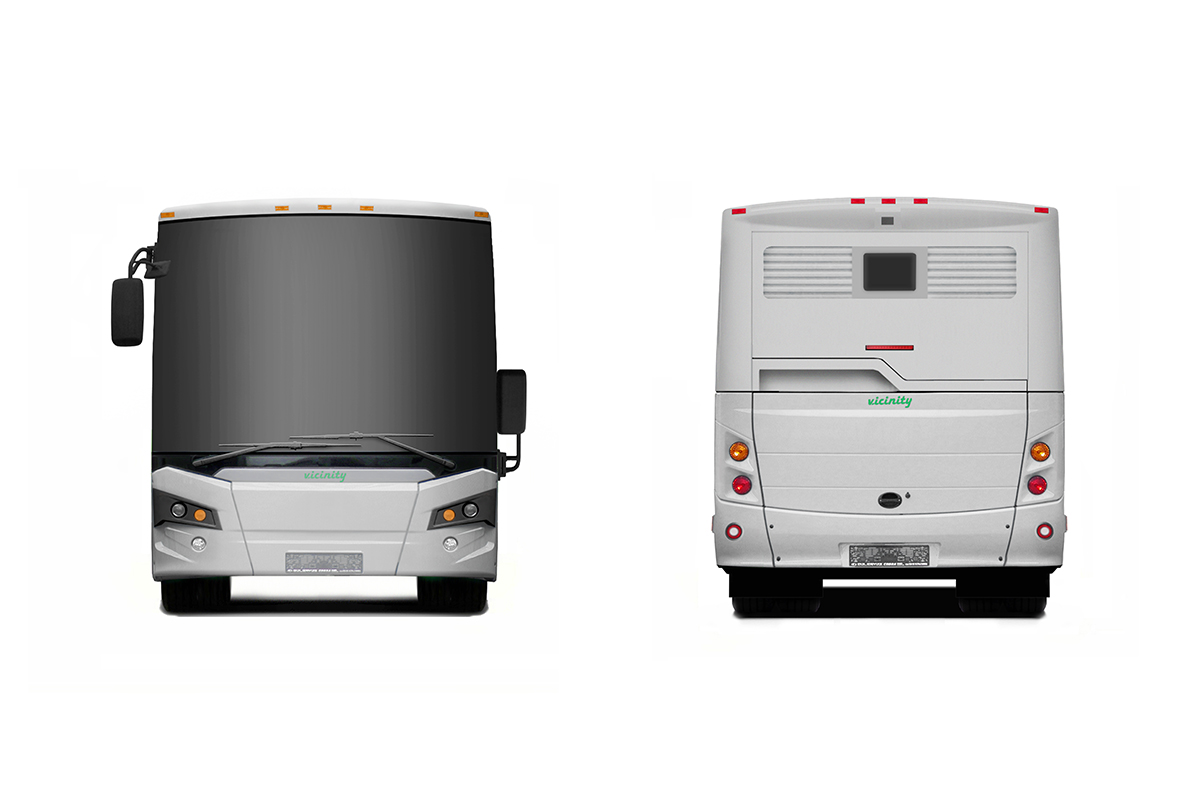

  • vicinity-models-lightning-ev-gallery-3-front-back.jpg

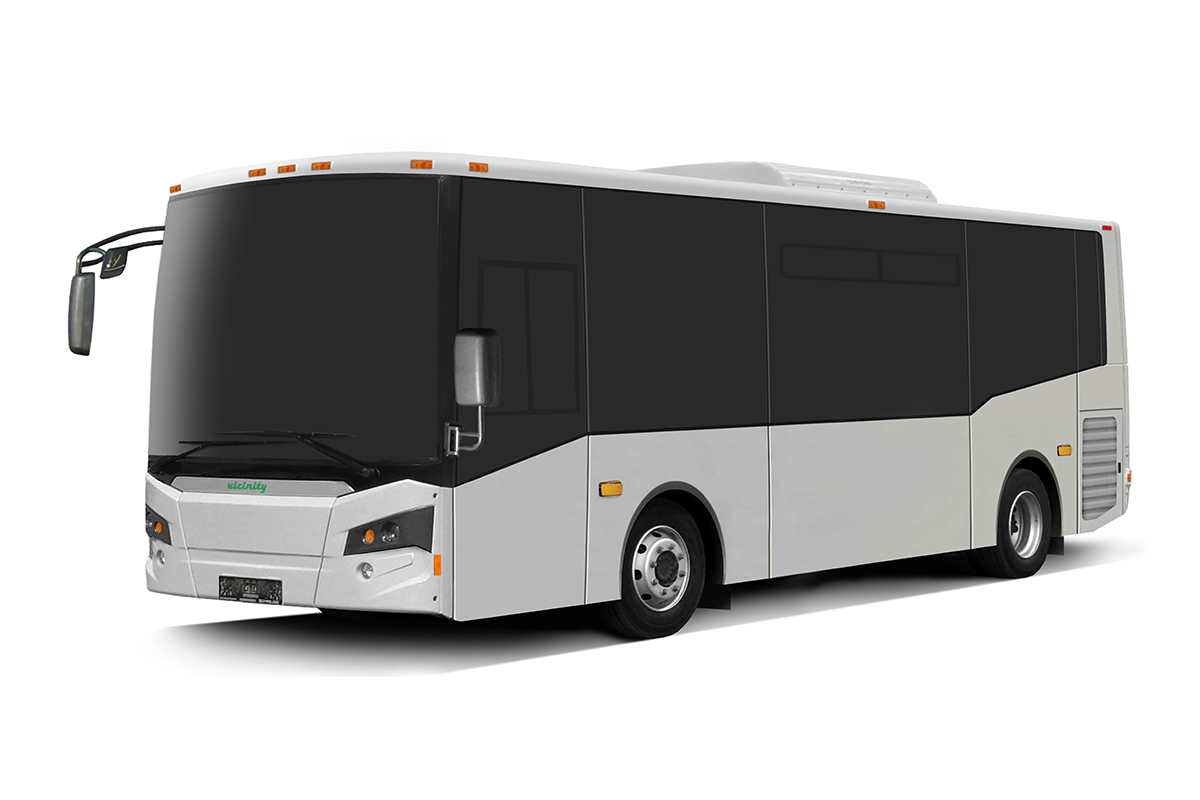

  • vicinity-models-lightning-ev-gallery-4-left-front.jpg
